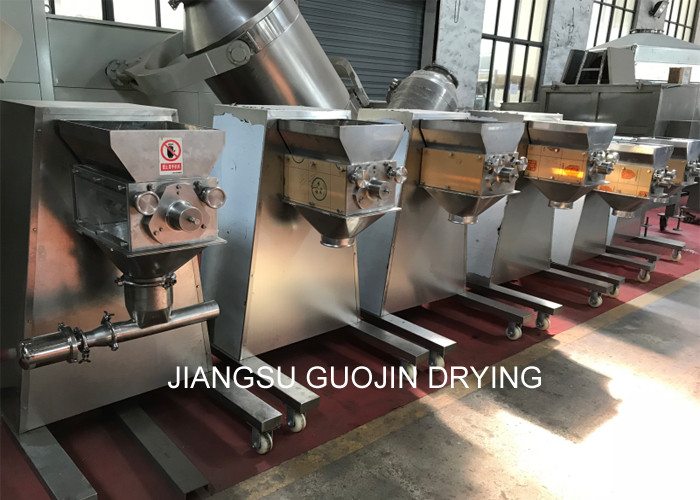

Mini Lab Swing Granulator Machine For Beverage Granules
The oscillating granulator can make particles from a mixture of powders, or from lumpy dry matter into the desired particles. It is suitable for small batch production in pharmaceutical, chemical, food, scientific research units, laboratories, hospitals and small health care products factories
It has a wide range of applications, uniform particles produced, no need for particle screening, thereby increasing production efficiency, reducing production costs and increasing production. Compared with powder, pellets are easy to take, store and transport. The machine is driven by mechanical transmission to swing the cylinder back and forth. The material is extruded into particles from the screen. As long as the screen mesh of different numbers is replaced, the coarse and fine particles are made. The drum does not need to be disassembled, the screen is easy to disassemble and is very light. The cleaning parts are only part of the granulating cavity, and the cleaning is very convenient. The particles made by the system contain less powder and particle size, convenient operation, simple control and long service life, which meet the requirements of GMP specification.
Product Features
1. The horizontal twin screw is sent to the press, which is convenient for adjusting the feeding amount, the rolling and cooling are even, and the powder is not easy to stick to the rolling.
2, the whole grain mechanism is made on the moving trolley, and the pellet is granulated by a specific angle of the knife, which can be easily granulated.
3, feeding, rolling, granules, easy to disassemble and clean, in line with GMP requirements.
4, vacuum degassing device, the efficiency can be increased by 2 to 4 times.
5. It is easy to replace the screen and less heat in the machine cavity.
6, the whole machine is fully enclosed, fully automatic operation, no dust.
The swing granulator is a mechanical drive. Under the action of friction, the drum rotates, and powdery materials are discharged from the screen hole and sent out of the machine under the action of positive and reverse rotation of the rotating drum. The particle size and density can be controlled to a certain extent by adjusting the tightness of the screen and the speed of the drum.
Product Application
This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specifications. After it is dried through backing, then press it to form all kinds of shaped products. It can also be used for dry block raw material that is crushed and coagulated. All parts in this machine are made of stainless steel. Its appearance is beauty. Its cleaning is very convenient. Its operation is very simple. Its energy consumption is very low.
Technical Parameters
| Model | Model B | Model C(heavy type) | ORM160-F-120(Non-standard) |
| Productive capacity(kg/h) | 100-200 | 150-300 | 600-1000 |
| Motor power(kw) | 3 | 4 | 7.5 |
| Roller revolution(r/min) | 65 | 65 | 10-44 |
| Swing angle | 360 | 360 | 360 |
| Roller diameter(mm) | 160 | 160 | 160 |
| Overall dimensions(mm) | 100*680*1250 | 1260*750*1250 | 3100*930*1250 |
| Weight(kg) | 300 | 450 | 2200 |
Product details
