7KW Pneumatic Sawdust Flash Dryer With Natural Gas Heating

  • 1
  • 2

Brand Name : Guojin

Model Number : PCD50

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Supply Ability : 10 sets per month

Delivery Time : 20-30days

Packaging Details : Standard export Carton

Item Name : Pneumatic Airflow Sawdust Wood Chips Flash Dryer

Model Type : PCD50

Water evaporation : 50 kg/h

Equipped power : 7 KW

Occupied area : 16 M2

Height : 9 M

Heating source : Steam,Natural gas, LPG, Coal, Electricity

Contact Now

Pneumatic Airflow Sawdust Wood Chips Flash Dryer

Pneumatic and Airflow dryer drying machine is used to suspend the wet material in the process of air flow through the hot air flow. High heat transfer coefficient, large heat transfer area and short drying time. Airflow dryer drying is also known as "instantaneous drying", which is the application of solid fluidization in drying.

The method is to make direct contact with the heating medium and solid particles being dry, and make the stay dry solid particles suspended in a fluid, and two large contact areas, to strengthen the heat and mass transfer process, is widely used for material drying unit operation.

PCD Pneumatic Conveying Dryer Features

1. Powerful drying. Little invest and the amount of evaporated moisture is high ( from 50kgH2O/h to 2000kgH2O/h)

2. The drying time is short. The series is suitable in strong heat sensitive materials. The finished product is seperated from outside, and no pollution with high quality.

3. The equipment is a total set, the heat source can be shoose from steam, coal fuel, oil fuel and gas fuel hot air furnace.

PCD Pneumatic Conveying Dryer Application

Ceramic industry: Kaolin, bentonite, clay, etc.

Foodstuff industry: Soybean protein, gelatinized starch, vinasse, triticum, wheat starch, etc.

Organics: Atrazine, lauric acid cadmium, benzoic acid, sodium oxalate, acetyl cellulose, etc.

Dyestuff: Anthraquinones, black iron oxide, indigo dye, butyrate, titanium oxide, zinc sulfide, various azo dye intermediates, etc.

Inorganic: Borax, calcium carbonate, hydrogen peroxide, etc.

Substance: Copper suifate, ferrix oxide, three antimony oxide, all kinds of metal salt, synthetic cryolite, etc

PCD Pneumatic Conveying Dryer Technical Parameters

Type

Moisture(kg/h)

Equipped power(kw)

Occupied area(m2)

Height(m)

PCD50

50

7

16

9

PCD100

100

13

26

11

PCD200

200

21

35

11

PCD250

250

24

51

13

PCD500

500

43

78

13

PCD1000

1000

100

105

15

PCD1500

1500

150

200

16

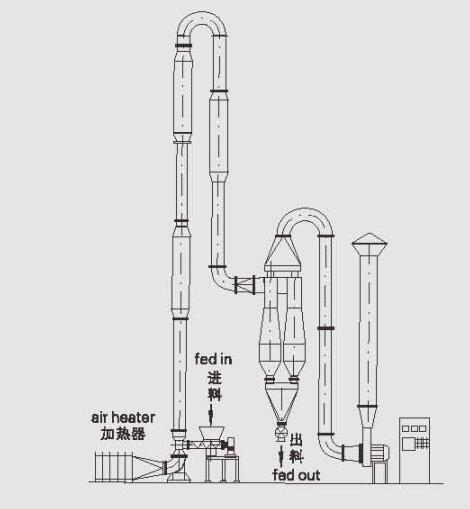

Sketch of Structure

7KW Pneumatic Sawdust Flash Dryer With Natural Gas Heating

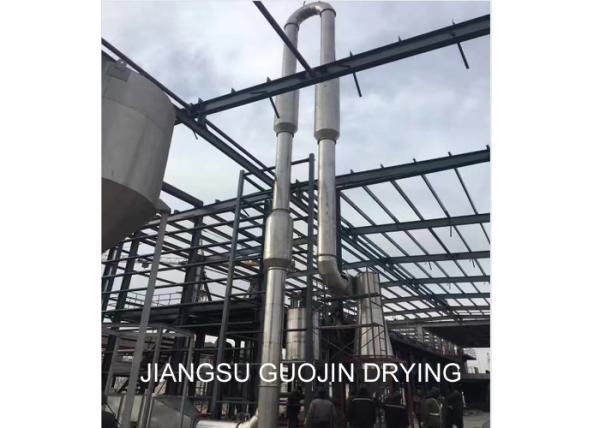

PCD Pneumatic Conveying Dryer Show

7KW Pneumatic Sawdust Flash Dryer With Natural Gas Heating
