ISO9001 Stainless Steel Tablet Film Coating Machine 5kg/batch

  • 1
  • 2

Brand Name : Guojin

Model Number : BGB

Certification : ISO9001

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiable

Supply Ability : 10 sets per month

Delivery Time : 20-30days

Packaging Details : Standard export Carton

Item Name : BGB Series High Efficiency Film Coating Machine/Tablet Film Coater

Application : Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Condition : New

Power : Depand on the model

Key Selling Points : Long Service Life

Warranty : 1 year

Material : Stainless steel

Coating Type : Batch Coating

Heating source : electrical

Contact Now

BGB Series High Efficiency Film Coating Machine/Tablet Film Coater

The high dfficiency coating machine is mainly used in the ppharmaceutical and food industries. It is an electromechanical coating equipment with high efficiency, energy saving, safety, cleanness and compliance with GMP requirements for organic film coating, water soluble film coating, slow and controlled release coating, dripping pill coating, sugar coating and chocolate and candy coating.

Product Features
  • Peristaltic pump with constant pressure and variable volume, with oil return pipe cancelled.
  • Touch screen display.
  • Expand PLC module, all parameters are set in control panel.
  • Sound insulation, heat insulation, heat preservation in the machine.
  • Fully sealed and operated under negative pressure.
  • Spray gun(Iwata, Japan)-Uniform atomization, large spray surface, adjustable direction, no dripping and clogging of the spray head.
  • Make materials mix obliquely, tumble and exchange frequently to avoid fragments and improve yield.

Technical Parameters

Item BGB-5 BGB-40 BGB-80 BGB-150
Capacity(kg/batch) 5 40 80 150
Drum speed(rpm) 6-30 6-30 3-15 3-15
Main motor power(kw) 0.75 1.1 1.5 2.2
Power of motor for high efficiency filtering hot air(kw) 0.35 0.55 1.1 1.5
Power of motor for dust removing and air exhaust(kw) 2.2 3 3 5.5
Overall dimension(LxWxH)(mm) 810*710*1410 1000*800*1600 1250*990*1880 1570*1260*2066

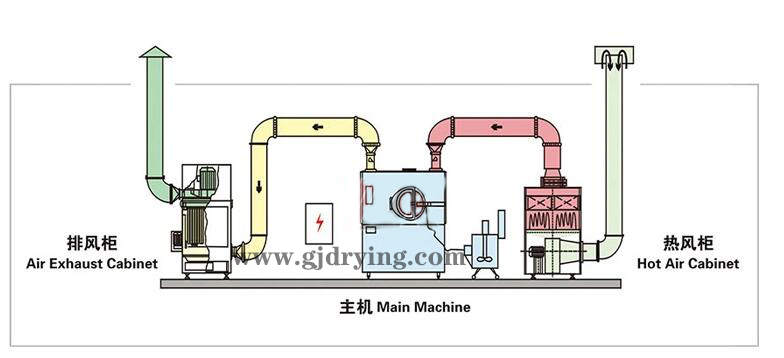

Technical Process

ISO9001 Stainless Steel Tablet Film Coating Machine 5kg/batch

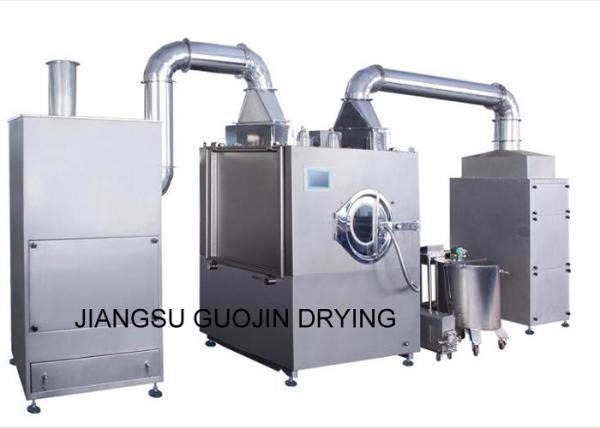

Product Show

ISO9001 Stainless Steel Tablet Film Coating Machine 5kg/batch
Contact Me
ISO9001 Stainless Steel Tablet Film Coating Machine 5kg/batch

electrical, steam, natural gas or other
